IP20 Led Emergency Driver Kit Panic Light Ballast For Triproof Light Down Light Ceiling Light Highbay Light

Deskripsi Produk

IP20 Led Emergency Driver Kit Panic Light Ballast for Triproof Light Down Light Ceiling Light Highbay Light

Product description

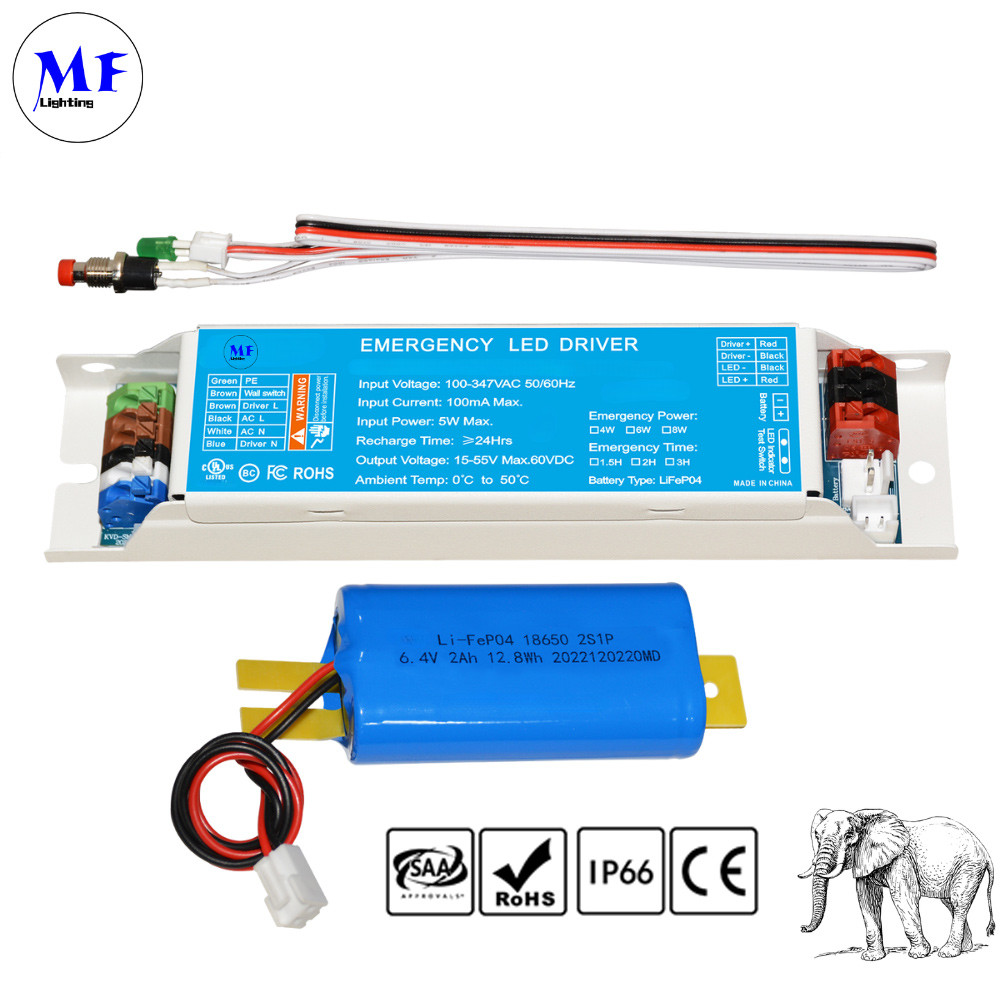

The MF-SM-xxW-8W LED Emergency Driver is a UL924/CSA-certified power backup solution featuring a 3000mAh LiFePO4 battery with 2000+ cycles and comprehensive protections. It supports 100-347VAC input, delivers 6W/8W output (15-55VDC/60-240VDC) with ≥1.5H runtime, and operates in 0°C-60°C environments. The unit includes smart LED indicators, automated quarterly testing, and manual emergency simulation, backed by a 5-year warranty for commercial/industrial lighting applications.


Certified Safety & Compliance
Meets rigorous UL924 and CSA C22.2 NO.141 safety standards with RoHS compliance, ensuring reliable operation in critical lighting applications.

Advanced Battery Technology
Features a high-capacity 3000mAh LiFePO4 battery with 2000+ charge cycles and comprehensive protection against overcharge, over-discharge, and short circuits.

Universal Power Compatibility
Supports wide input voltage range (100-347VAC) with dual output options (15-55VDC/60-240VDC), making it adaptable to various lighting configurations.

Smart Operation & Monitoring
Integrated LED indicators provide clear status updates, while automated quarterly self-tests and manual test button ensure continuous system reliability.

Durable & Maintenance-Friendly
Designed for harsh environments (0°C-60°C operation) with minimal maintenance requirements, backed by an industry-leading 5-year warranty.

Features

Meet most of safety standards for lighting
Standard CSA C22.2 NO.141 UL924
External lithium iron phosphate battery
Battery protections: over charge protection over discharge protection short circuit protection
Indicator shows a variety working modes
The batteries Meet 2000 cycles of standard CH and standard DCH
RoHS compliant

Specifications:

​

Universal Input Voltage:	100-347Vac 50/60Hz
AC Input Current:	100mA max.
AC Input Power Rating:	5.0W max.
Battery Charging Current:	250mA
Charging Time:	≥24Hours
Output Current and Voltage:	15-55VDC/60-240VDC
Emergency Time:	≥1.5H
Battery:	Li-Fep04 2000mAh-6.4V
Output Power:	8W
Full Warranty:	5 Years
Temperature Rating Ambient:	Li-Fep04 0°C to 60°C (32°F to 104°F)

​​Wiring Diagram

Standardized Color-Coding System
Green/Yellow: Protective Earth (PE) connection
Blue: Neutral (AC N) input
Brown/Black: Live (AC L) input
Red/Black: Emergency output to LED array

Dual-Circuit Integration
Simultaneously connects to both main power (AC L/N) and emergency driver
Maintains separate pathways for normal and emergency operation

Driver Interface Connections
Dedicated terminals for LED driver input (Driver L/N)
Clearly marked emergency circuit outputs (Driver +/-)

Load Connection Points
Positive/Negative terminals for LED array (LED +/-)
Designed for direct connection to lighting fixtures

Safety-Compliant Layout
Proper separation of AC and DC circuits
Clear identification of all connection points per IEC standards

Physical Configuration
Integrated terminal block design
Strain relief provisions for wiring

Measure

​LED and test button status

LED INDICATOR
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
TEST BUTTON
1: 0S<Key≤2S, Enter a simulated state of emergency, the green indicator blinks once every second, keep emergency status for 10±1 seconds and back to normal status
2: In simulated emergency situations, Short press once to exit and return to the normal charging state
3: 0S<Key≤1S. In the emergency state, the emergency state is turned off.
QUARTERLY SELF-TEST
when emergency driver is on power, every 180 days±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

​Installation Instructions

1: If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2: When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5: Emergency driver testing must be longer than 1min, don't press the testing button frequently.

​Application

Application:

Commercial Spaces
Malls, offices & retail stores requiring UL924-compliant emergency lighting for safe evacuations.
Healthcare & Education
Hospitals and schools needing reliable backup lighting in critical areas.
Industrial Facilities
Warehouses and plants requiring durable 0-60°C operation with 1.5hr runtime.
Transport Infrastructure
Airports and subways where automatic emergency lighting is mandatory.
Hospitality Venues
Hotels and convention centers needing discreet, high-performance emergency systems.
