IP 20 3W-12W Adjustable Power Customizable Output Converter Panic Light Ballast Emergency Kit LED Emergency Driver for Ceiling Light Highbay light

Deskripsi Produk

Factory Price IP 20 3W-12W Adjustable Power Customizable Output converter Panic Light Ballast Emergency Kit LED Emergency Driver for ceiling light highbay ligh

Product description

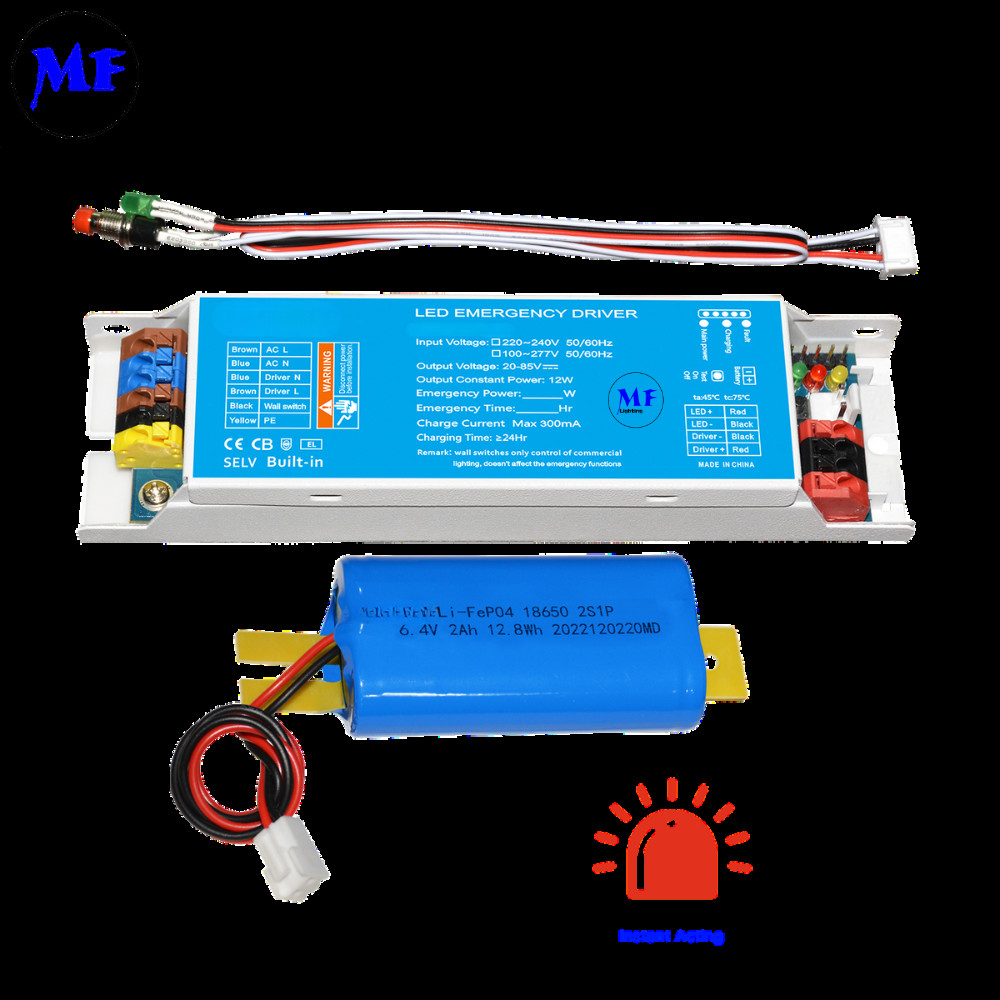

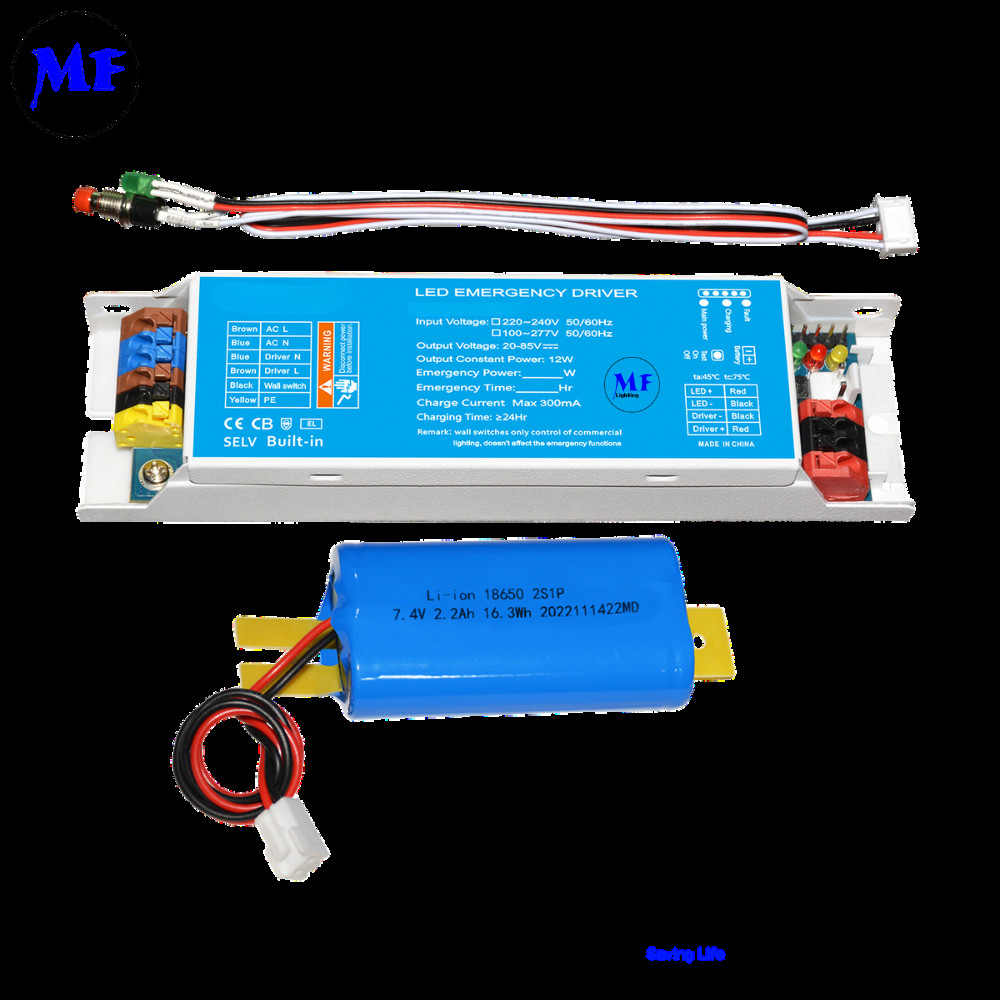

The MF-188B LED Emergency Driver provides flexible emergency power solutions with customizable 3W-12W output and 1H-3H runtime options. Featuring 220-240V AC input and compatibility with multiple battery types (Li-ion/Li-FePO4/Ni-CD), it offers comprehensive protection against overcharge, over-discharge, overload and short circuits. The unit includes smart LED indicators (green=main power, red=charging, yellow=faults) and multi-mode testing (3-second simulation/30-minute monthly/90-minute annual tests). Its compact 108×150mm IP20-rated design features automatic 90-day self-testing and 0uA standby current. Compliant with IEC 61347-2-7 standards and backed by a 3-year warranty, it's ideal for LED emergency lighting systems requiring 24-hour initial charging and periodic maintenance. The driver supports external battery connections and maintains operation within -20°C to 40°C temperature range.




Customizable Power & Runtime - Offers flexible 3W-12W output with 1H-3H emergency duration to suit various lighting needs.
Multi-Battery Compatibility - Supports Li-ion/Li-FePO4/Ni-CD batteries, providing installation flexibility.
Smart Protection System - Built-in safeguards against overcharge, over-discharge, overload, and short circuits for enhanced safety.
Advanced Self-Testing - Features 3-second quick test, 30-minute monthly test, and 90-minute annual test for reliable maintenance.
Auto-Diagnostic Indicators - LED status lights (green/red/yellow) for real-time monitoring of power, charging, and faults.
Zero Standby Consumption - 0uA static current when idle, preserving battery life.
Compact & Versatile - IP20-rated, 108×150mm design fits seamlessly into existing lighting systems.
Compliance & Warranty - Meets IEC 61347-2-7 standards and comes with a 3-year warranty for assured quality.

​

​

Input voltage	220-240Vac, 50/60Hz
Input current	0.003A Max. @230Vac
Input wattage	<5.0W
Power factor	≥0.5 @230 Vac
Battery charging	350mA Max.
Emergency output Voltage	DC20-85V,DC90V Max.
Discharging time&Power	12W 3H
Battery Data	Li-ion 6.6Ah 7.4V
Battery Size	165*38*20mm
Storage Temperature	-20-40ºC
Electric Strength	3000Vac, 5mA (input to output)
IP Rating	IP 20
Maximum shell temperature	75ºC
Warranty	3 Years
Relevant standard	IEC 61347-2-7 / IEC 61347-1 / EN55015

​

​Wiring Diagram

​

Measure

LED and test button status

LED INDICATOR
Green: In main power mode
Red: charging mode, when 95% charging red light off
Yellow: The battery is not connected, the battery is short-circuited, open-circuited
The emergency status indicators are all turned off

TEST BUTTON
1: 0S < Key ≤ 2S, Enter a simulated state of emergency, the green indicator blinks once every second, keep emergency status for 3 seconds and back to normal status
2: 3S < Key ≤ 5S, The green indicator flashes twice in 1 second, enters the monthly self-test, maintains the emergency state for 30 minutes and back to normal status
3: 6S < Key, The green indicator flashes 5 times in 1 second, enters the annual self-test, maintains the emergency state for 90 minutes and back to normal status
4: In the state of monthly inspection or annual inspection, short press once to exit and return to the normal charging state
5: 0S < Key ≤ 1S, In the emergency state, the emergency state is turned off.

QUARTERLY SELF-TEST
when emergency driver is on power, every 90 days ± 1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

​Installation Instructions

1: If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power
to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2: When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5: Emergency driver testing must be longer than 1min, don't press the testing button frequently.

​Application

Application:

Commercial Buildings
Shopping malls and retail stores (emergency aisle lighting)
Office buildings (exit path illumination)
Hotels and restaurants (safety lighting)
Public Facilities
Hospitals and clinics (critical area lighting)
Schools and universities (evacuation route lighting)
Government buildings (emergency exit signs)
Industrial Applications
Warehouses (safety pathway lighting)
Factories (production area emergency lighting)
Parking garages (directional lighting)
Transportation Hubs
Airports (terminal emergency lighting)
Subway stations (platform safety lighting)
Bus terminals (evacuation route marking)

​Packaging & Shipping

Product Line
